API Concepts
We’ve created a simple guide to API concepts, data models, and usage to help you build your video workflows on MK.IO.

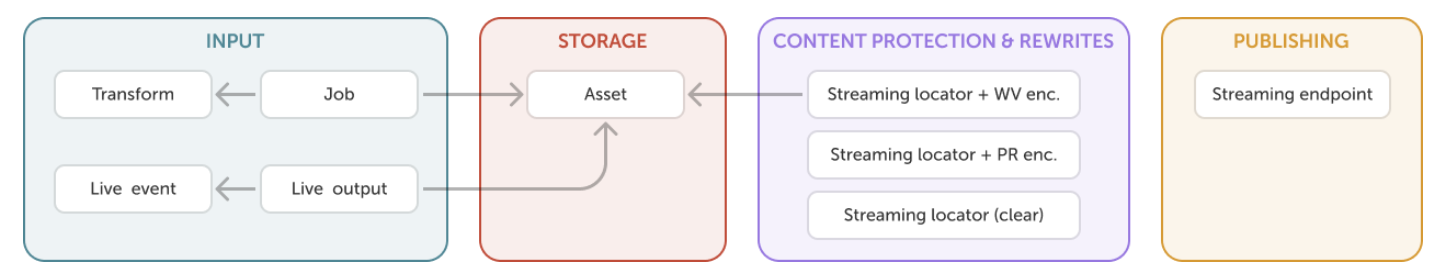

Four building blocks of the API
The MK.IO API is conceptually broken into four main parts: Inputs, Assets, Streaming Locators, and Streaming Endpoints.
Let’s explore the API
Input
Inputs are the methods used to bring content into the system.
- Content is transformed into an Asset upon entry.
- Static content is uploaded to cloud storage and processed using a Job.
- Live content is ingested via a Live Event, with a time-shift buffer defined by a Live Output.
Storage
Assets represent the location where content is stored in your cloud storage. They are decoupled from inputs, allowing the content to be managed and accessed at any point in the future.
Content protection and rewrites
Streaming Locators connect DRM policies and filters to an asset, allowing a dynamic packager (JITP) to process the content. Locators handle DRM and manifest rewrites; you can create several locators for a single asset to support different business rules.
Publishing
Streaming Endpoints define the domain name for your content and provide options for integrating with CDNs. Streaming Endpoints are used for scaling your output and delivering content to global audiences.
Every Streaming Locator you create is available at every Streaming Endpoint within your project.
Data model
Everything within MK.IO revolves around an Asset. All inputs—whether file-based or live—are treated as assets on the output side.
Assets have policies attached to them via a Streaming Locator, which are then bound to a Streaming Endpoint for delivery.
MK.IO Data Model Overview
